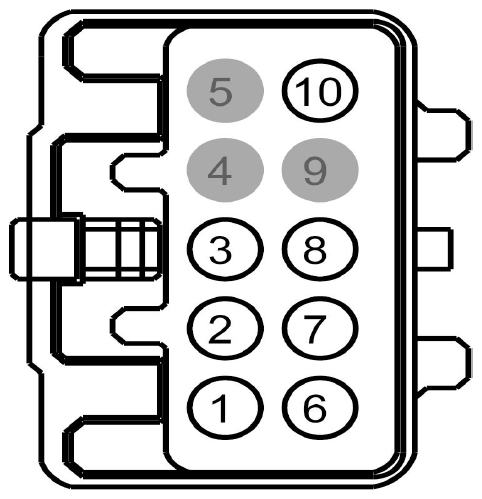

Lighting/Siren Control Module Connector End View (C4808A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBB73 (WH-BN) | 14 | FUSE - 73 OR CIRCUIT BREAKER | |
| 2 | SAP05 (VT) | 18 | POLICE - WIGWAG SWITCH POWER | |
| 3 | VAP08 (BN) | 16 | LOUDSPEAKER - POLICE + | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | VLN04 (VT-GY) | 18 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 7 | CAP10 (BN-VT) | 18 | POLICE - LAMP PACKAGE TRAY | |
| 8 | CAP12 (VT-OG) | 16 | POLICE - FLASHER REAR | |
| 9 | * | * | Not Used | |
| 10 | GD347 (BK-VT) | 14 | GROUND - PILLAR C OR QUARTER PANEL LEFT |

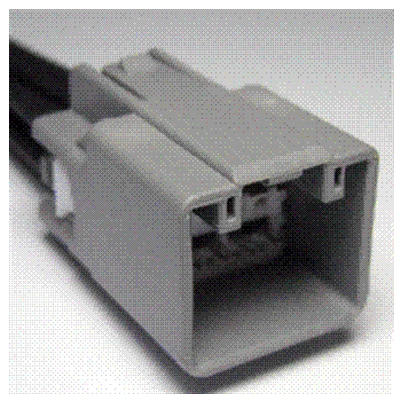

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1175 | Service Part Number: BU2Z-14S411-VA Gauge: 16 Pin material: Tin (greased) Cavities: 10 Vehicle Uses
|
