Sync Gen 2

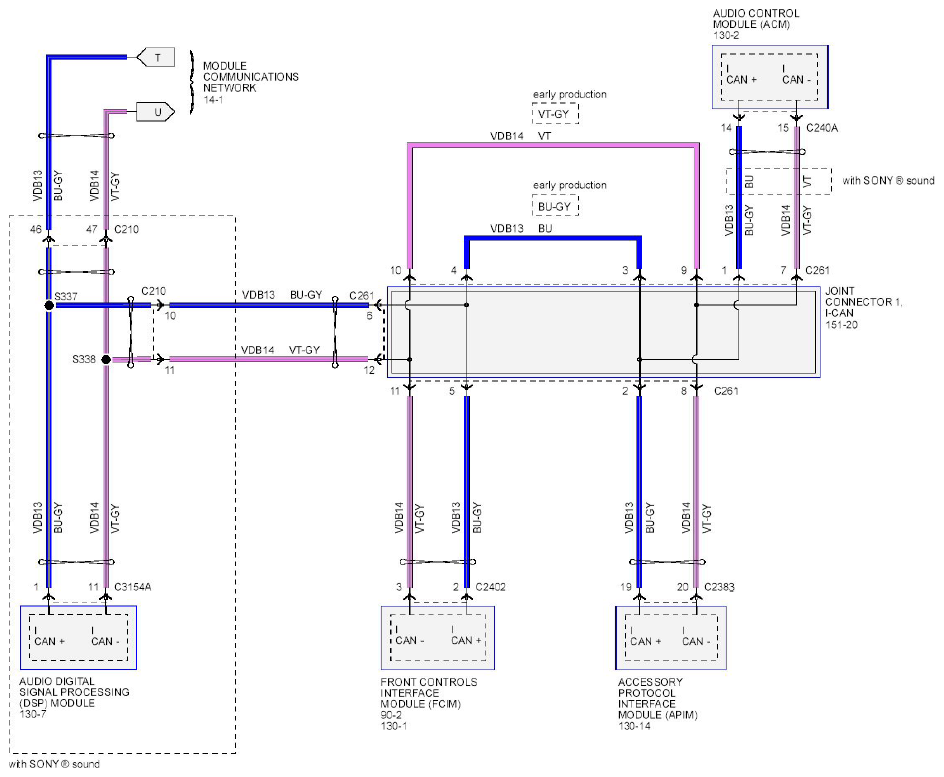

Fig 1: Module Communication Network (SYNC GEN 2) - Wiring Diagram

G08748346

Courtesy of FORD MOTOR CO.
