Home >> Ford >> 2013 >> Explorer Police Interceptor, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams >> Module Communication Network >> Except Sync Gen 2

Except Sync Gen 2

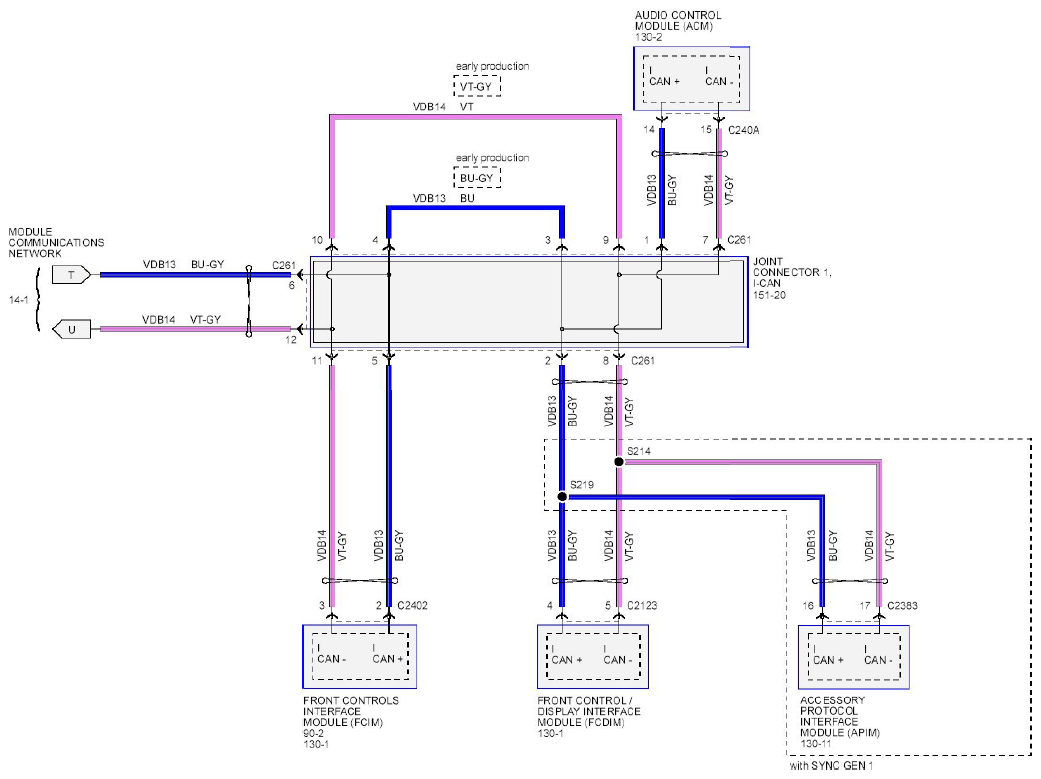

Fig 1: Module Communication Network - Wiring Diagram (Except SYNC GEN 2)

G08748345

Courtesy of FORD MOTOR CO.
