Removal And Installation

  1. NOTE: The SelectShift® switch is part of the selector lever knob. To install a new SelectShift® switch a new selector lever knob must be installed.

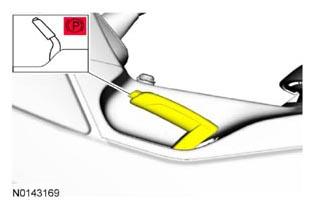

    Fully apply the parking brake lever.

    G08615153

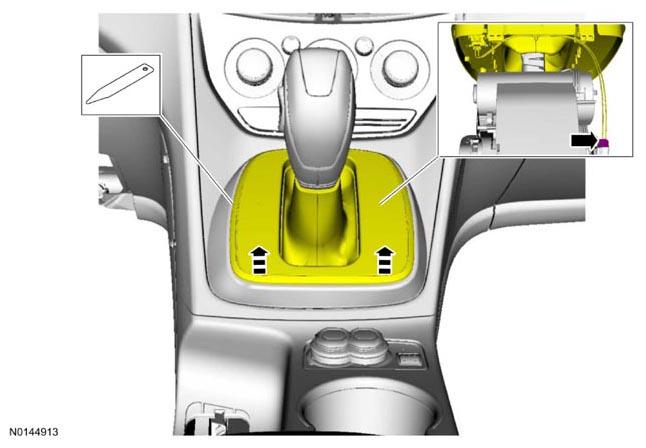

  2. NOTE: Interior trim remover.
    G08615159

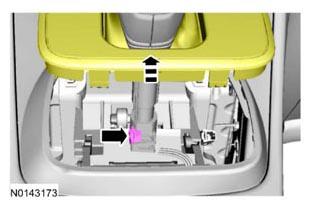

  3. G08615155

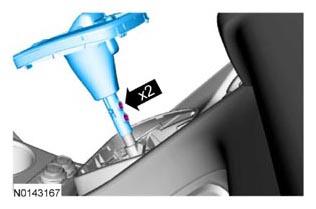

  4. G08615156

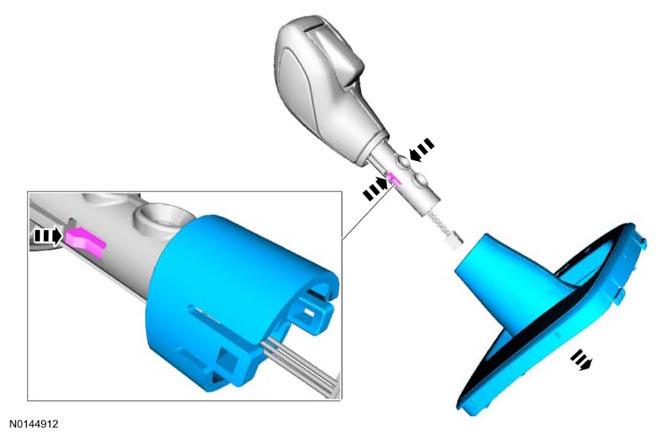

  5. G08615157
  6. To install, reverse the removal procedure.
