Electrical short within the harness

Splice tape removed

  1. = Intermittent short

    Splice covered

  2. = Wire strand
  3. = Splice tape
  4. = Harness tape

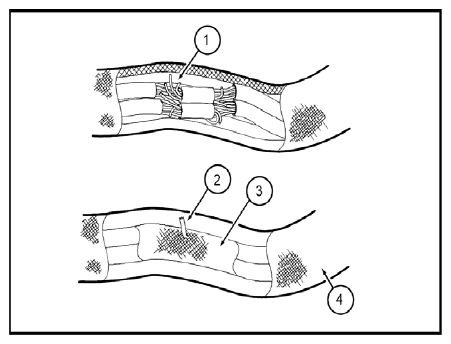

    Fig 1: Identifying Electrical Short Within Harness
    G08741518Courtesy of FORD MOTOR CO.
