Accelerator Pedal: Removal

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

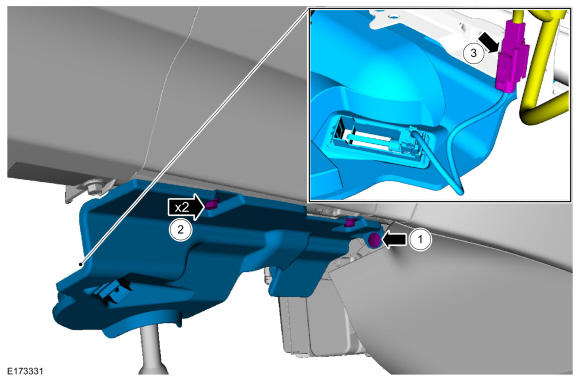

1.
- 1.

  Remove the push pin.
- 2.

  Remove the retainers.
  Torque: 35 lb.in (4 Nm)
- 3.

  Disconnect the electrical connector and remove the LH insulation panel.

Courtesy of FORD MOTOR COMPANY

2.

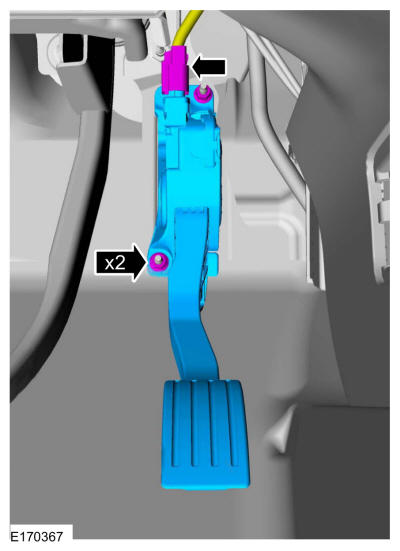

NOTE: To prevent setting DTC make sure the ignition is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

Disconnect the electrical connector, remove the nuts and the accelerator pedal assembly.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
