Front Sliding Glass Panel Adjustment

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass (rear fixed or front sliding) has been removed or adjusted, or if the roof opening panel frame has been removed.

1.

Position the front sliding glass panel to the fully closed position.

GFD51546

Courtesy of FORD MOTOR COMPANY

2.

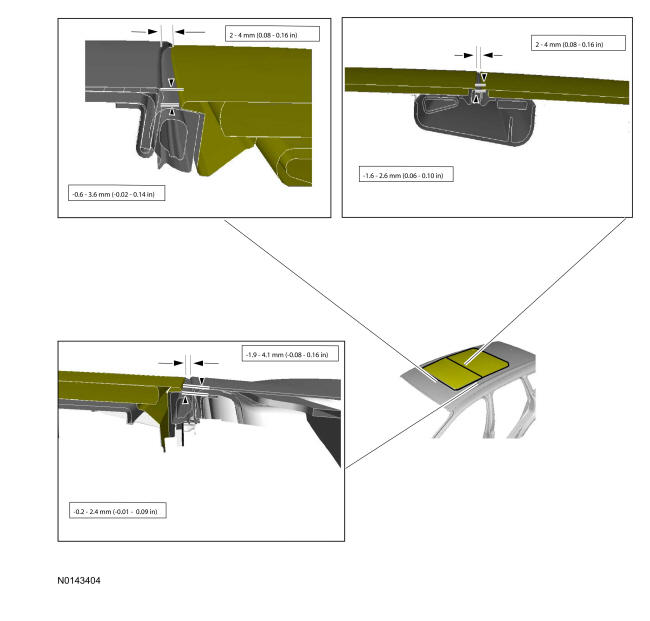

Measure the front sliding glass panel to roof and roof height at the front of the glass, the side of the glass and the front sliding glass panel to rear fixed glass panel as shown below.

GFD51550

Courtesy of FORD MOTOR COMPANY

3.

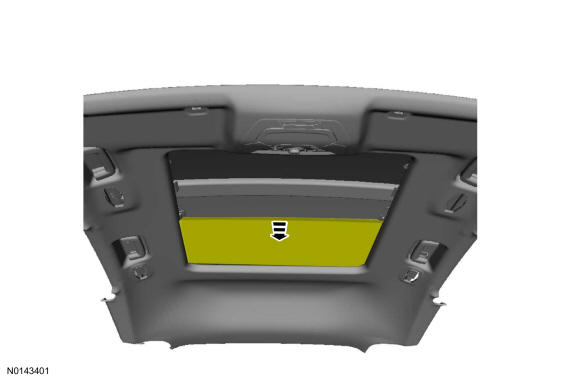

If necessary. Place the roof opening panel shield to the fully open position.

GFD51548

Courtesy of FORD MOTOR COMPANY

4.

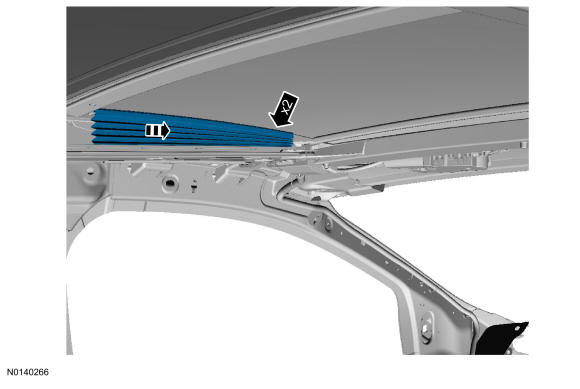

If necessary. On both sides, remove the roof opening panel blind.

GFD51551

Courtesy of FORD MOTOR COMPANY

5.

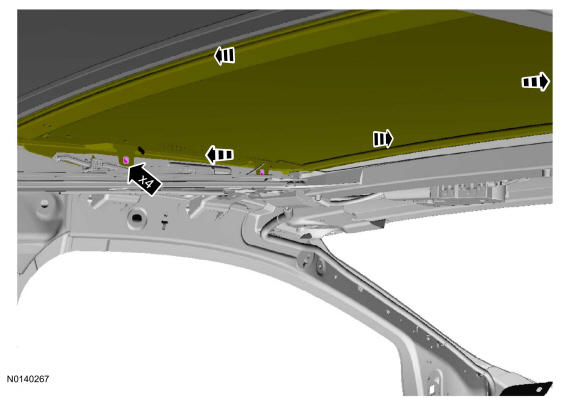

If necessary. Adjust the front sliding glass.
1. 1.

  NOTE: LH side shown, RH side similar.

  On both sides. Loosen the retaining bolts.

  Torque: 44 lb.in (5 Nm)
1. 2.

  Adjust the front sliding glass panel to specifications from the previous steps.

GFD51552

Courtesy of FORD MOTOR COMPANY

6.

If any adjustment was made on the front sliding or rear fixed glass panels, initialize the front sliding glass panel. Refer to: Power Roof Opening Panel Initialization .
