Climate Control Housing: Installation

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    To install, reverse the removal procedure.

  1. 2.

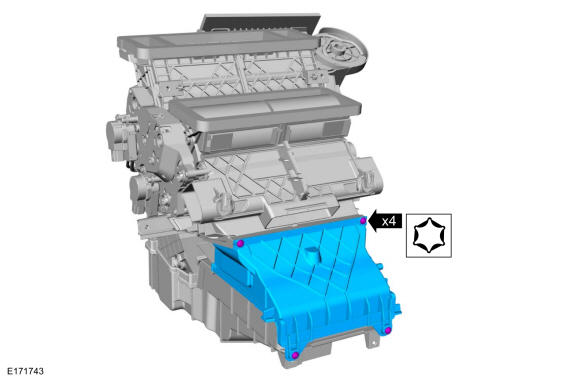

    NOTE: If the climate control housing is being replaced, remove the air plenum bezel from the new climate control housing prior to installation.
GFD50714Courtesy of FORD MOTOR COMPANY
