Rear Door Alignment
WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.
Check
- 1.WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
Adjustment

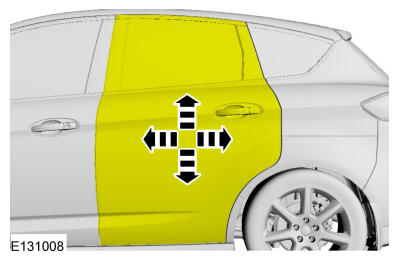

Up/Down and Fore/Aft
- 1.
Check body to rear door dimensions. Refer to: Body and Frame .
- 2.
Remove the safety belt retractor and pretensioner. Refer to: Seatbelt Retractor and Pretensioner .
- 11.
Check the body to rear door dimensions. Refer to: Body and Frame .
- 12.
Install the safety belt retractor and pretensioner. Refer to: Seatbelt Retractor and Pretensioner .
In/Out
- 13.
Remove the safety belt retractor and pretensioner. Refer to: Seatbelt Retractor and Pretensioner .
- 14.
Check the body to rear door dimensions. Refer to: Body and Frame .
- 21.
Check the body to rear door dimensions. Refer to: Body and Frame .
- 22.
Install the safety belt retractor and pretensioner. Refer to: Seatbelt Retractor and Pretensioner .
