Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire. Refer to: Wheel and Tire .

2.

NOTE: Make sure that the sensor housing is clean and free of foreign material.

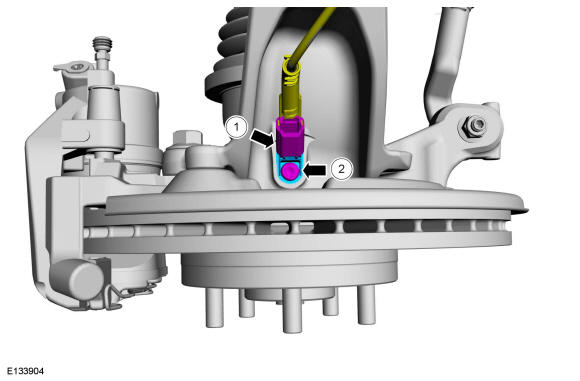

- 1.

  Disconnect the electrical connector.
- 2.

  Remove the bolt and the front wheel speed sensor.
  Torque

  : 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
