Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front wheel and tire.

    Tightening torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

  2. Remove the front wheel speed sensor mounting bolt (A).

    Tightening torque:

    6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

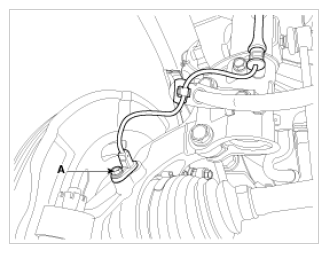

    Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt
    G09886790Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the front wheel guard.
  4. Disconnect the front wheel speed sensor connector (A), and then remove the front wheel speed sensor.

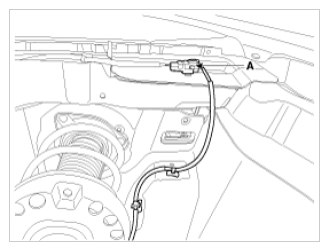

    Fig 2: Identifying Front Wheel Speed Sensor Connector
    G09886791Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
