Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
NOTE:
  • Take care not to scratch the body surface.
  1. Remove the front seat assembly.

    (Refer to "FRONT SEAT ASSEMBLY ")

  2. Remove the floor console assembly.

    (Refer to "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the front pillar trim.

    (Refer to "FRONT PILLAR TRIM ")

  4. Remove the cowl side trim.

    (Refer to "COWL SIDE TRIM ")

  5. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

  6. Remove the steering column shroud panel.

    (Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")

  7. Remove the glove box housing.

    (Refer to Crash Pad - "GLOVE BOX HOUSING ")

  8. Remove the instrument cluster.

    (Refer to "INSTRUMENT CLUSTER ")

  9. Remove the audio unit.

    (Refer to "AUDIO UNIT ")

  10. Remove the knee airbag (KAB) Module.

    (Refer to "KNEE AIRBAG (KAB) MODULE ")

  11. Disconnect the steering column connectors.

    (Refer to "STEERING COLUMN AND SHAFT ")

  12. Down the steering column after loosening the mounting bolts.

    (Refer to "STEERING COLUMN AND SHAFT ")

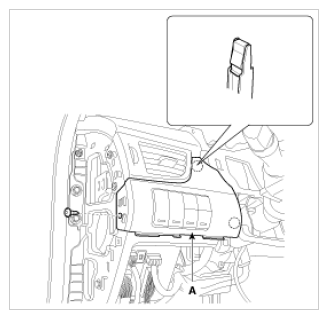

  13. After loosening the mounting screw, then remove the crash pad lower switch (A).
    Fig 1: Identifying Crash Pad Lower Switch
    G09887055Courtesy of HYUNDAI MOTOR AMERICA

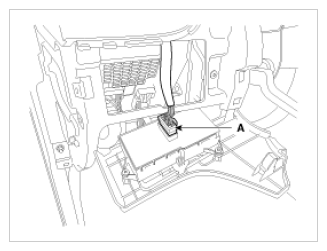

  14. Disconnect the crash pad lower switch connector (A).
    Fig 2: Identifying Crash Pad Lower Switch Connector
    G09887056Courtesy of HYUNDAI MOTOR AMERICA

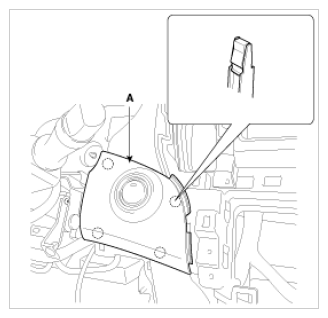

  15. Using a screwdriver or remover, remove the crash pad driver's panel [RH] (A).
    Fig 3: Identifying Crash Pad Driver's Panel (RH)
    G09887057Courtesy of HYUNDAI MOTOR AMERICA

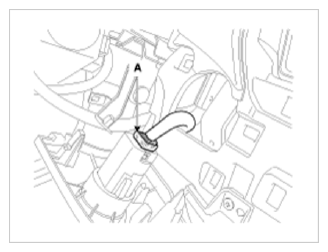

  16. Disconnect the start/stop button connector (A).
    Fig 4: Identifying Start/Stop Button Connector
    G09887058Courtesy of HYUNDAI MOTOR AMERICA

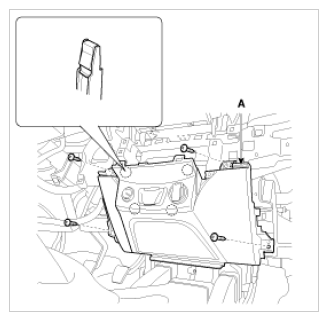

  17. After loosening the mounting screws, then remove the crash pad center lower panel (A).
    Fig 5: Identifying Crash Pad Center Lower Panel
    G09887059Courtesy of HYUNDAI MOTOR AMERICA

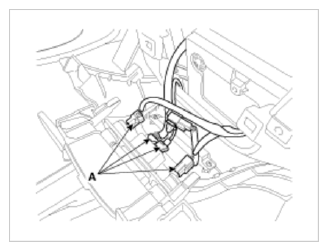

  18. Disconnect the connectors (A).
    Fig 6: Identifying Connectors
    G09887060Courtesy of HYUNDAI MOTOR AMERICA

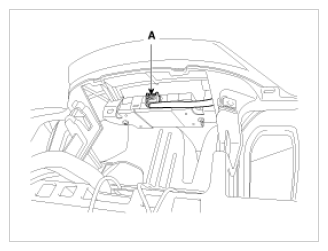

  19. Disconnect the cubis connector (A).
    Fig 7: Identifying Cubis Connector
    G09887061Courtesy of HYUNDAI MOTOR AMERICA
  20. Using a screwdriver or remover, remove the photo sensor (A).
  21. Disconnect the photo sensor connector (B).
    Fig 8: Identifying Photo Sensor Connector
    G09887062Courtesy of HYUNDAI MOTOR AMERICA

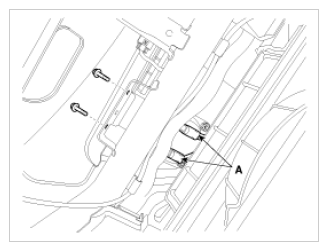

  22. Disconnect the passenger's airbag connectors (A).
  23. Loosen the mounting bolts.
    Fig 9: Identifying Passenger's Airbag Connectors And Mounting Bolts
    G09887063Courtesy of HYUNDAI MOTOR AMERICA

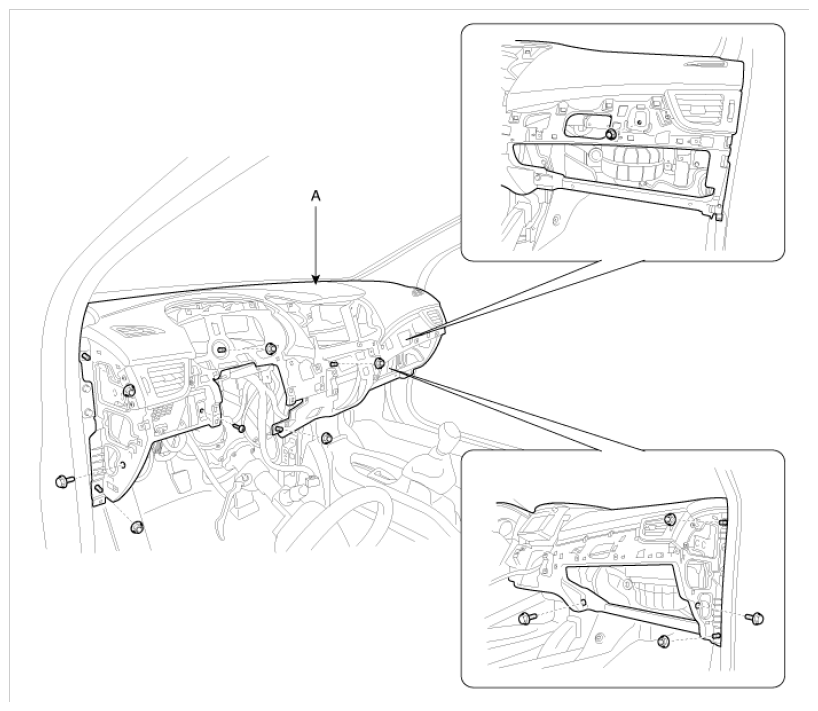

  24. After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).
    Fig 10: Identifying Main Crash Pad Assembly
    G09887064Courtesy of HYUNDAI MOTOR AMERICA
  25. Install in the reverse order of removal.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
