Front Wipers
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

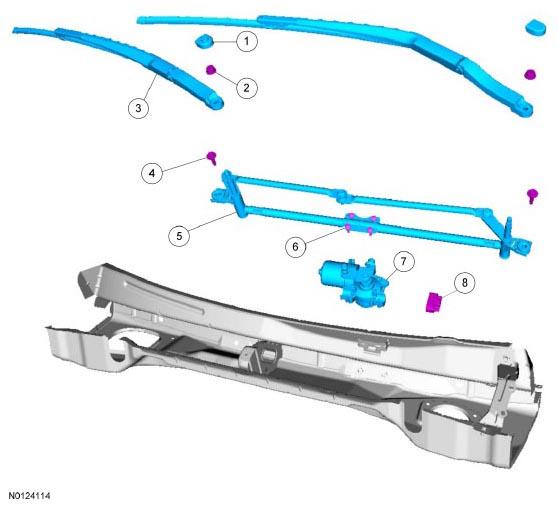

| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 17C526 | Windshield wiper pivot arm nut cover | - | - | - |
| 2 | W709581 | Windshield wiper pivot arm nut | - | - | 30 Nm (22 lb-ft) |
| 3 | 17526 RH 17527 LH | Windshield wiper pivot arm | - | - | - |
| 4 | N806528 | Windshield wiper mounting arm and pivot shaft assembly bolt (2 required) | - | - | 20 Nm (177 lb-in) |
| 5 | 17566 | Windshield wiper mounting arm and pivot shaft assembly | - | - | - |
| 6 | - | Windshield wiper motor bolts (part of 17508) | - | - | - |
| 7 | 17508 | Windshield wiper motor | - | - | - |
| 8 | - | Windshield wiper motor electrical connector (part of 14290) | - | - | - |
