Audio Digital Signal Processing (DSP) Module: Removal

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Upload the Audio DSP Module configuration information to the scan tool by following the scan tool on screen instructions.
Position aside the liftgate weatherstrip.
NOTE: To avoid damage to the liftgate scuff plate trim panel, remove any retaining clips from the body and attach them to the liftgate scuff plate trim panel before installing.

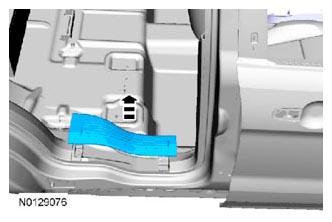

Remove the liftgate scuff plate trim panel.
- Pull upward to release the retaining clips.
NOTE: To avoid damage to the scuff plate trim panel, remove any retaining clips from the body and attach them to the scuff plate trim panel before installing.

Remove the rear RH door scuff plate trim panel.
- Pull upward on the scuff plate trim panel to release the retaining clips.

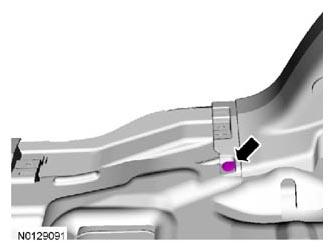

Remove the RH quarter trim panel retaining push pin.
Position the RH second row seat in the flat position and then tilt the second row seat forward.
Position the RH third row seat in the flat position.
Remove the RH cargo retaining hooks.
NOTE: To avoid damage to the quarter trim panel, remove any retaining clips from the body and attach them to the quarter trim panel before installing.

Position the RH quarter trim panel aside.
- Pull the RH quarter trim panel toward the inside of the vehicle to release the retaining clips.

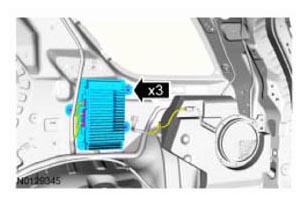

Remove the 3 bracket screws and the audio DSP module.
- Disconnect the electrical connectors.
- To install, tighten to 13 Nm (115 lb-in).
