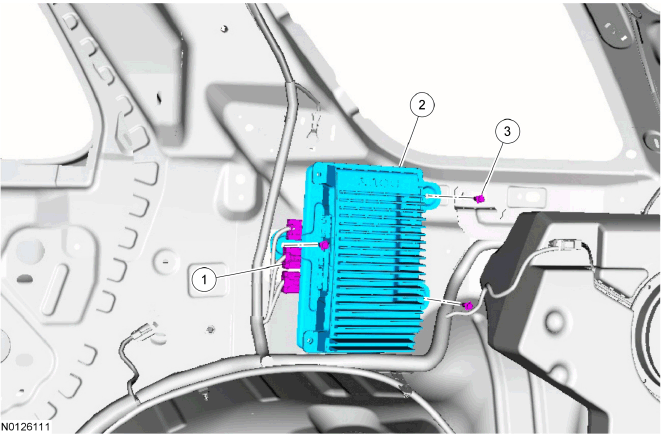

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |
| 1 |
- |
Audio DSP
Module electrical connector (part of 14A005) |
- |
- |
- |
| 2 |
18B849 |
AudioDigital Signal Processing (DSP) Module |
- |
- |
- |
| 3 |
W705661 |
Audio DSP
Module bracket screws (3 required) |
- |
- |
7 Nm (62 lb-in) |
