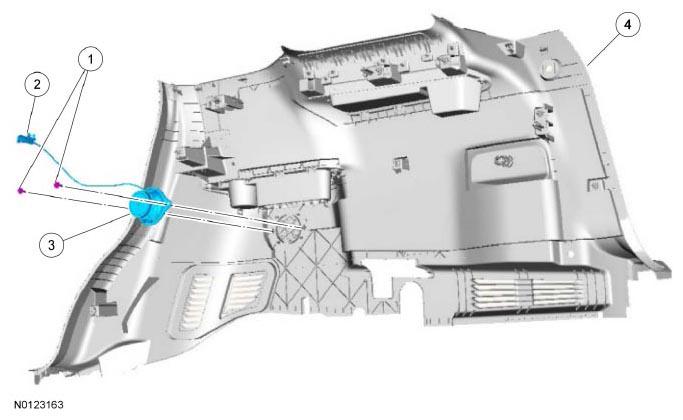

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Part Number |
Description |
| 1 |
W705314 |
Speaker-quarter panel screws (2 required) |
| 2 |
- |
Speaker-quarter panel electrical connector |
| 3 |
18808 |
Speaker-quarter panel |
| 4 |
31012 |
Quarter trim panel |
