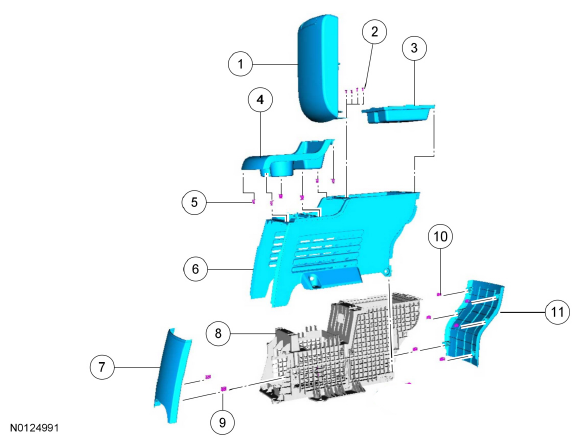

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Part Number |
Description |
| 1 |
7806024 |
Armrest |
| 2 |
W706450 |
Armrest screws (4 required) |
| 3 |
74115A00 |
Storage tray |
| 4 |
7413562 |
Upper finish panel |
| 5 |
W710338 |
Upper finish panel clips (6 required) |
| 6 |
74045C22 |
Console finish panel |
| 7 |
7404567 |
Front finish panel |
| 8 |
74045A90 |
Console structure |
| 9 |
W710338 |
Front finish panel clips (2 required) |
| 10 |
W710338 |
Rear finish panel clips 6 required) |
| 11 |
74045E24 |
Rear finish panel |
| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |

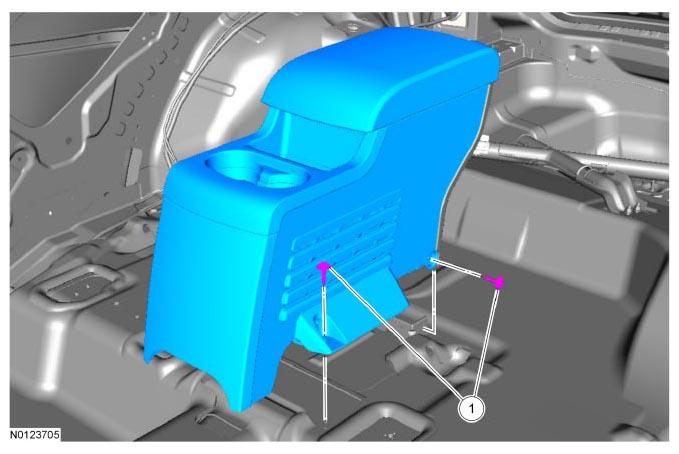

| 1 |
W707486 |
Console floor bolts (4 required) |
7 Nm (62 lb-in) |
- |
- |
