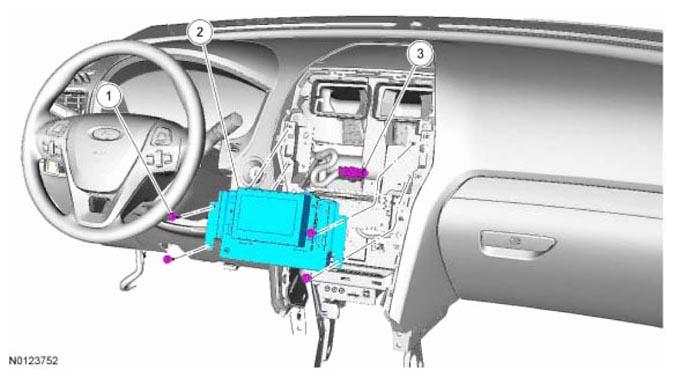

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |
| 1 |
W707628 |
FCDIM
screws (4 required) |
2 Nm (18 lb-in) |
- |
- |
| 2 |
10D885 |
FCDIM |
- |
- |
- |
| 3 |
- |
FCDIM
electrical connector (part of 14401) |
- |
- |
- |
