Exploded View

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

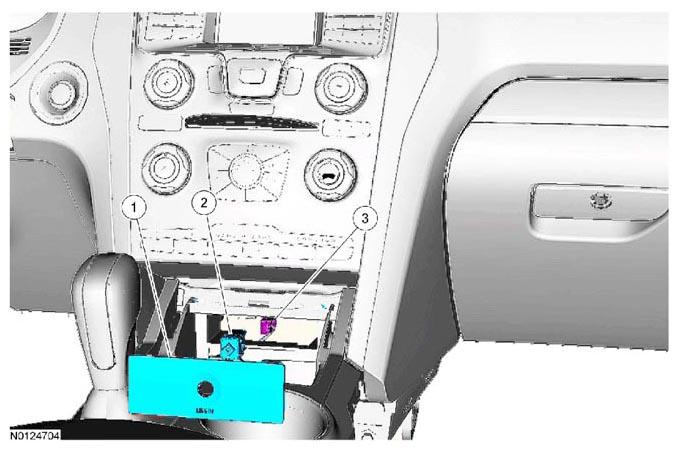

G07431177
Item Part Number Description
1 19C149 Audio input jack bezel
2 19A164 Audio input jack
3 - Audio input jack electrical connector
