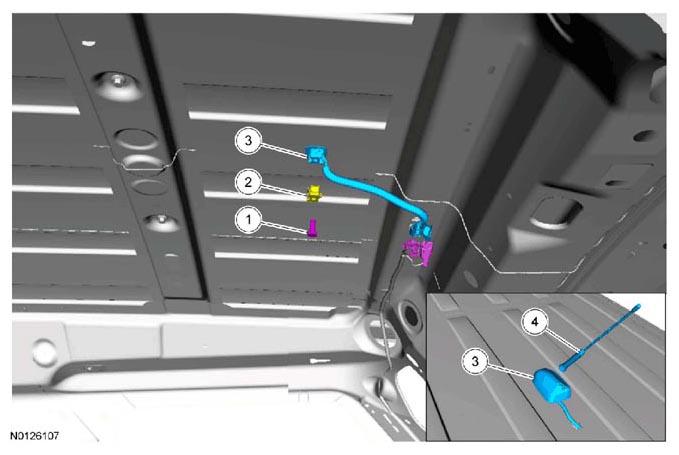

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |
| 1 |
- |
AM/FM antenna with SDARS
mounting bolt (part of 18936) |
10 Nm (89 lb-in) |
- |
- |
| 2 |
- |
Mounting plate (part of 18936) |
- |
- |
- |
| 3 |
18936 |
AM/FM antenna with SDARS |
- |
- |
- |
| 4 |
18813 |
AM/FM antenna with SDARS
mast |
- |
- |
- |
