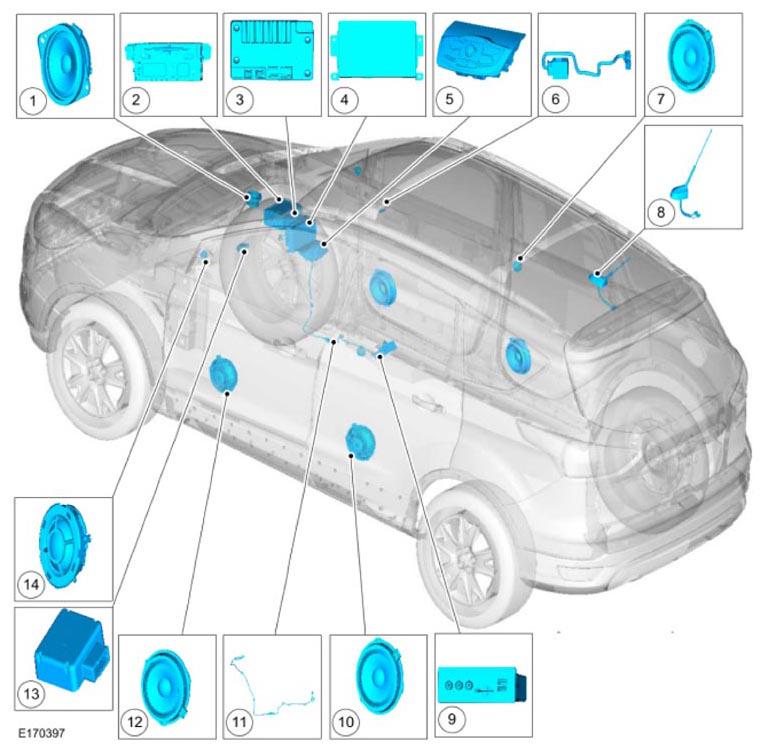

Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | GPSM |
| 2 | 4.2-inch (107 mm) FCDIM |
| 3 | ACM |
| 4 | FCIM |
| 5 | SYNC® microphone (located in the overhead console) |
| 6 | Combination AM /FM /satellite radio (if equipped) antenna |
| 7 | Audio input jack and USB port |
| 8 | USB cable |
| 9 | APIM |
| 10 | Left Rear (LR) door speaker (Right Rear (RR) also shown) |
| 11 | Left Front (LF) door speaker (Right Front (RF) also shown) |
| 12 | Left Front (LF) A-pillar tweeter speaker (Right Front (RF) also shown) |
| - | AM
/FM
antenna coaxial cable (not shown) Comments: Part of the 14014 harness |
| - | Satellite radio (if equipped) antenna coaxial cable (not shown) Comments: Part of the 14014 harness |
