Master window control switch - Without door modules: Schematic

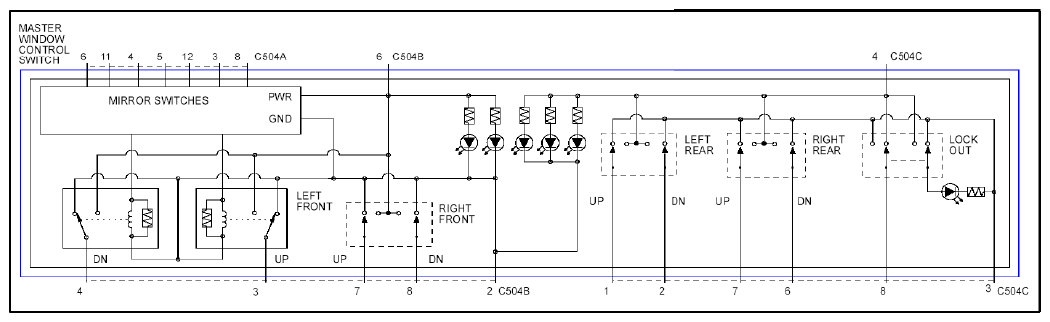

Fig 1: Master Window Control Switch Schematic - Without Door Modules

G08741824

Courtesy of FORD MOTOR CO.
