Image Processing Module-B (IPM-B): Removal

  1. NOTE: Module configuration is required when a new IPM-B is being installed.

    If a new module is being installed, upload the module configuration information from the IPM-B into the scan tool by following the instructions on the scan tool.

  2. Remove the LH rear quarter trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .

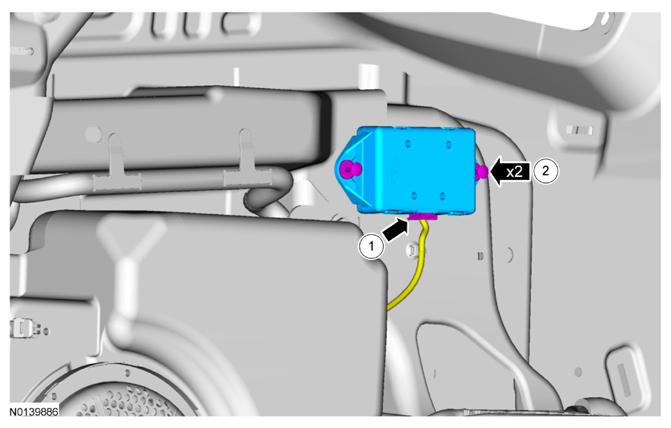

  3. G08620299
