Main Control Cover: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Remove the ACL assembly. Refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
  3. Drain the transmission fluid.
    G08626977
    • Tighten to 9 Nm (80 lb-in).
      G08626977

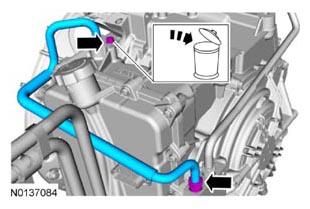

  5. Discard the specified component. Follow local disposal regulations.
    G08626990
  6. G08626991
  7. G08621945
  8. G08621946
  9. G08626994
  10. NOTE: Note the location of the of the studbolts for assembly.
    G08412656
