Liftgate Latch/Unlatch Assembly Connector End View (C4339)

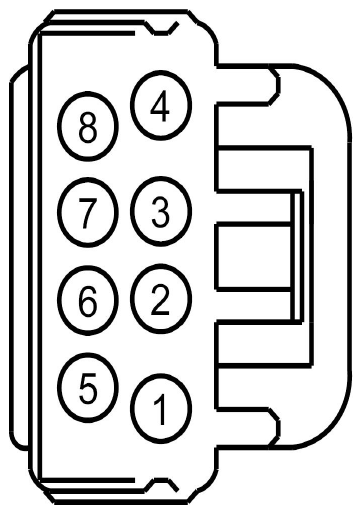

Fig 1: Identifying Liftgate Latch / Unlatch Assembly Connector (C4339)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CPR61 (BN)	16	CTRL MOD. - POWER LIFTGATE # CINCH
2	CPR64 (VT-OG)	20	LATCH - LIFTGATE # LATCH SWITCH HALF
3	CPR65 (BU-GN)	20	LATCH - LIFTGATE # LATCH SWITCH FULL
4	CPR62 (WH-BU)	16	CTRL MOD. - POWER LIFTGATE # UNCINCH
5	CPR66 (GY-YE)	20	LATCH - LIFTGATE # RATCHET SWITCH
6	CPR67 (VT)	20	LATCH - LIFTGATE # SECTOR GEAR SWITCH 1
7	CPR68 (YE)	20	LATCH - LIFTGATE # SECTOR GEAR SWITCH 2
8	GD149 (BK-GY)	22	GROUND - PILLAR D LEFT

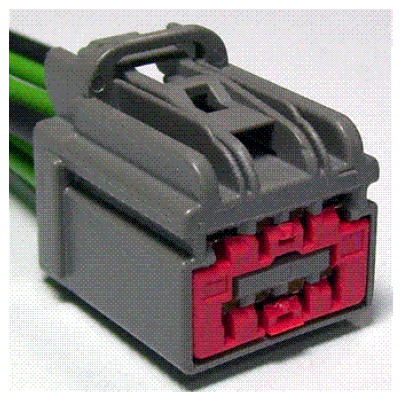

Available Pigtail Kits
Pigtail Kit Part Number WPT-1212	Service Part Number: 3U2Z-14S411-DYB Gauge: 12 16 Pin material: Tin & Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Motor - Power Window - LH - Front Motor - Power Window - RH - Front Motor - Rear Window Wiper Switch - Multifunction
