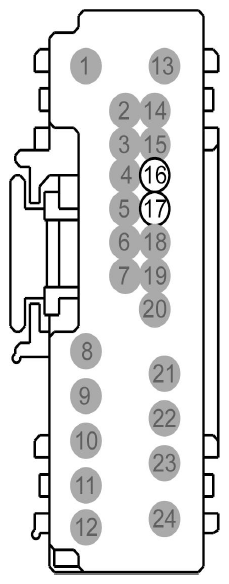

Driver Seat Module (DSM) Connector End View (C3299C)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | CPS15 (VT-WH) | 22 | SWITCH - MEMORY P1 | |
| 17 | CPS16 (YE) | 22 | SWITCH - MEMORY P2 | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used |
| Available Pigtail Kits | |
|---|---|

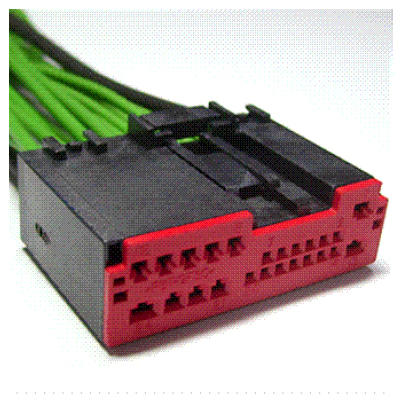

| Pigtail Kit Part Number WPT-1126 | Service Part Number: AU2Z-14S411-ATA Gauge: 12 16 18 Pin material: Tin & Silver Cavities: 24 Vehicle Uses
|
