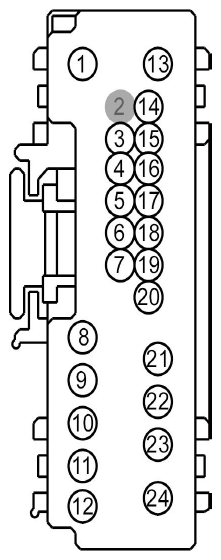

| 1 |
SBP07 (WH-RD) |
22 |
FUSE - 7 OR CIRCUIT BREAKER |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
VPS11 (GN-BN) |
22 |
SENSOR - DRIVER SEAT REAR TILT |
|
| 4 |
VPS10 (BU-GN) |
22 |
SENSOR - DRIVER SEAT FRONT TILT |
|
| 5 |
CPS26 (YE-BU) |
22 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN |
|
| 6 |
CPS24 (GY) |
22 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT DOWN |
|
| 7 |
CPS30 (VT-BN) |
22 |
SWITCH - SEAT ADJUST. DRIVER RECLINE REARWARD |
|
| 8 |
RPS13 (GN-OG) |
22 |
CTRL MOD. - DRIVER SEAT SENSORS POSITION |
|
| 9 |
CPS06 (GN-WH) |
14 |
CTRL MOD. - DRIVER SEAT REARWARD |
|
| 10 |
CPS04 (YE-OG) |
14 |
CTRL MOD. - DRIVER SEAT REAR HEIGHT DOWN |
|
| 11 |
CPS02 (GY-YE) |
14 |
CTRL MOD. - DRIVER SEAT FRONT HEIGHT DOWN |
|
| 12 |
CPS01 (GN-BU) |
14 |
CTRL MOD. - DRIVER SEAT FORWARD |
|
| 13 |
CPS07 (GY-BN) |
14 |
CTRL MOD. - DRIVER SEAT RECLINE FORWARD |
|
| 14 |
VPS09 (BN-BU) |
22 |
SENSOR - DRIVER SEAT HORIZONTAL (FORWARD/REARWARD) |
|
| 15 |
CPS28 (GN) |
22 |
SWITCH - SEAT ADJUST. DRIVER REARWARD |
|
| 16 |
CPS23 (GN-VT) |
22 |
SWITCH - SEAT ADJUST. DRIVER FORWARD |
|
| 17 |
CPS27 (BU-BN) |
22 |
SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP |
|
| 18 |
CPS25 (WH-VT) |
22 |
SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT UP |
|
| 19 |
CPS29 (WH-BN) |
22 |
SWITCH - SEAT ADJUST. DRIVER RECLINE FORWARD |
|
| 20 |
VPS12 (GY-OG) |
22 |
SENSOR - DRIVER SEAT RECLINE |
|
| 21 |
CPS08 (VT-OG) |
14 |
CTRL MOD. - DRIVER SEAT RECLINE REARWARD |
|
| 22 |
CPS05 (BU-WH) |
14 |
CTRL MOD. - DRIVER SEAT REAR HEIGHT UP |
|
| 23 |
CPS03 (VT-GY) |
14 |
CTRL MOD. - DRIVER SEAT FRONT HEIGHT UP |
|
| 24 |
GD133 (BK) |
22 |
GROUND - COWL SIDE/PILLAR A LEFT |
|
