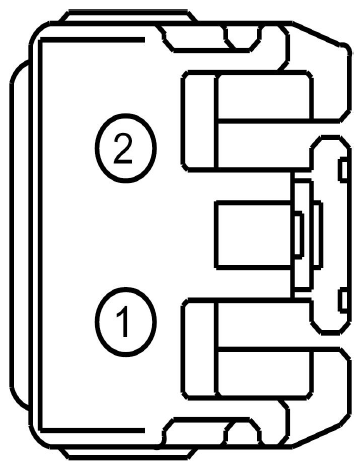

Driver Seat Module (DSM) Connector End View (C3299A)

Fig 1: Identifying Driver Seat Module (DSM) Connector (C3299A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB23 (WH-RD)	14	FUSE - 23 OR CIRCUIT BREAKER
2	GD145 (BK-BU)	14	GROUND - PILLAR B RIGHT

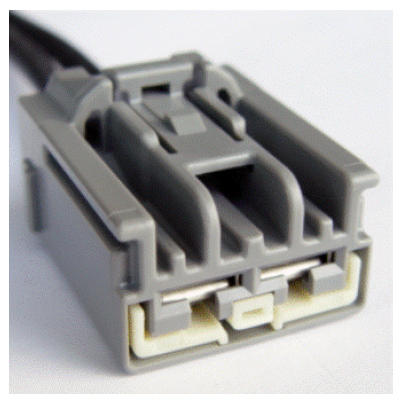

Available Pigtail Kits
Pigtail Kit Part Number WPT-236	Service Part Number: 3U2Z-14S411-PA  Gauge: 10  Pin material: Tin  Cavities: 2  Vehicle Uses Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater/A/C Blower (Front)
