Selector Lever: Notes

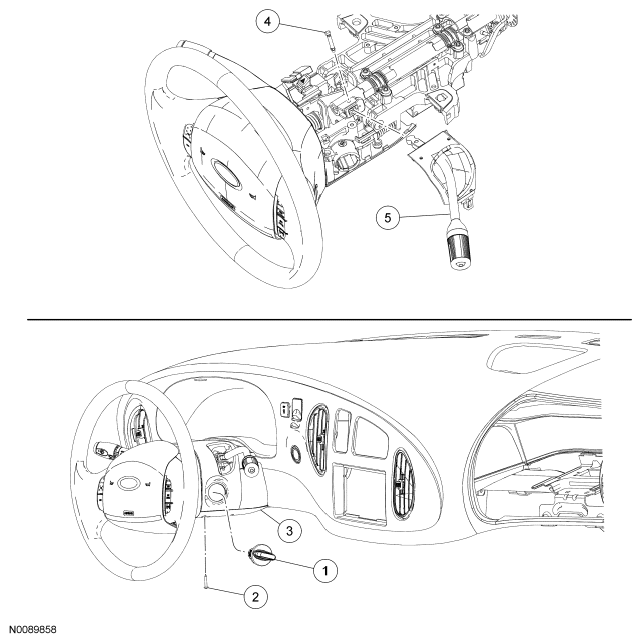

Fig 1: Identifying Ignition Lock Cylinder, Screw, Upper Steering Column Shroud, Selector Lever Pin And Selector Lever
G06601492Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7C24 Ignition lock cylinder
2 55929 Screw (3 required)
3 3530 Upper steering column shroud
4 7G357 Selector lever pin
5 7210 Selector lever
