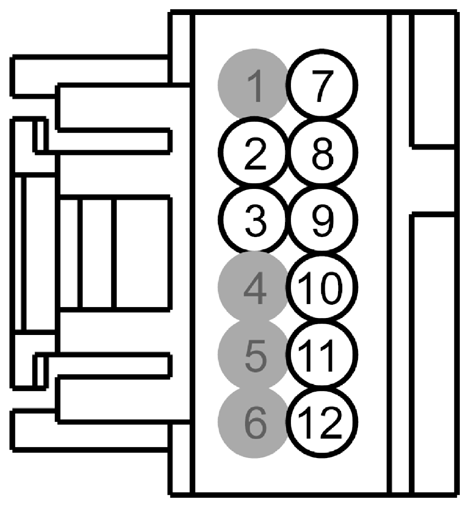

Transmission Control Switch (TCS) Connector End View (C3245)

Fig 1: Identifying Transmission Control Switch (TCS) Connector (C3245)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	CBP85 (YE)	22	FUSE - 85 OR CIRCUIT BREAKER
3	CET47 (BU)	22	SWITCH - REVERSE (RS)
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION
8	GD133 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT (6L2T)
9	CDC41 (WH)	22	SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)
10	CDC41 (WH-BN)	22	SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)
11	GD133 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT (6L2T)
12	CET52 (GN)	20	SWITCH - TRANSMISSION PARK DETECT

Available Pigtail Kits

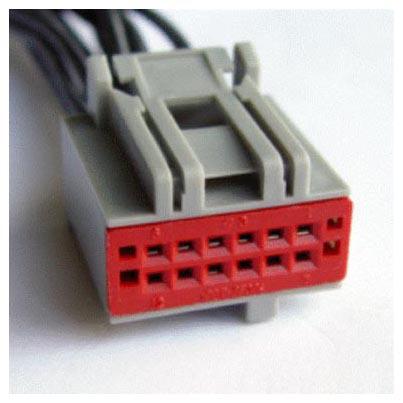

Pigtail Kit Part Number WPT-949	Service Part Number: 3U2Z-14S411-BMAB  Gauge: 18  Pin material: Silver  Cavities: 12  Vehicle Uses Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety

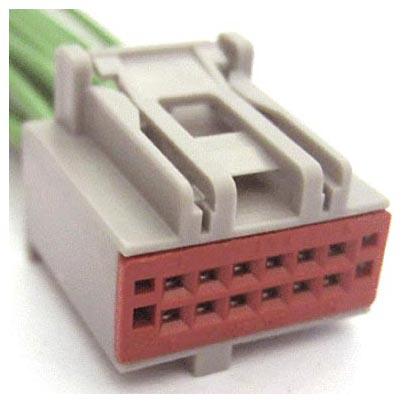

Pigtail Kit Part Number WPT-760	Service Part Number: 3U2Z-14S411-BMAA  Gauge: 18  Pin material: Tin  Cavities: 12  Vehicle Uses Coil - Ignition Lamp - Storage Compartment - Trunk Mirror - Rearview Module - Heated Seat (Rear)
