SUNLOAD Sensor Connector End View (C286)

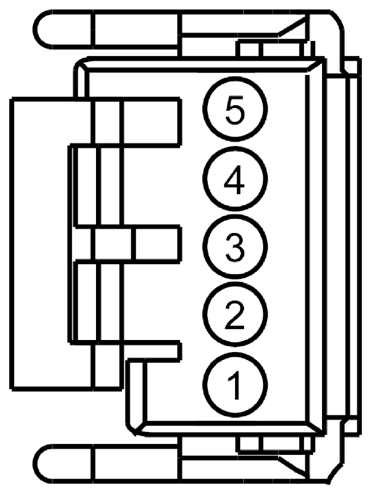

Fig 1: Identifying Sunload Sensor Connector (C286)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VH416 (VT-GY)	22	SENSOR - SUN LOAD # LEFT
2	VH417 (YE-OG)	22	SENSOR - SUN LOAD # RIGHT
3	RH104 (BU-BN)	22	CTRL MOD. - CLIMATE # SENSOR RETURN
4	VH414 (GN-BU)	22	SENSOR - INCAR TEMP.
5	RH107 (BK-WH)	22	CTRL MOD. - AMBIENT TEMP. SENSOR
