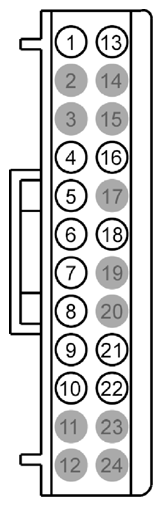

| 1 |
VDB06 (BK) |
18 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
CPL78 (VT-WH) |
22 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION |
|
| 5 |
CLS26 (BU-GY) |
20 |
CTRL MOD. - TURN LAMP RIGHT MIRROR + |
|
| 6 |
CLN32 (BN-YE) |
20 |
CTRL MOD. - PUDDLE LAMP RIGHT |
|
| 7 |
CRD14 (WH-OG) |
20 |
CTRL MOD. - HEATER MIRROR RIGHT |
|
| 8 |
CPM33 (WH-VT) |
22 |
CTRL MOD. - RIGHT MIRROR RIGHT |
|
| 9 |
CPM06 (GN-WH) |
22 |
CTRL MOD. - RIGHT MIRROR COMMON GLASS ADJUSTMENT |
|
| 10 |
CPM34 (WH-BN) |
22 |
CTRL MOD. - RIGHT MIRROR UP |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
VDB07 (BK) |
18 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
RPW05 (GN-BN) |
22 |
CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
RPM08 (GN-BU) |
20 |
CTRL MOD. - RIGHT MIRROR RETURN |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
CPW12 (GN-OG) |
22 |
SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN |
|
| 22 |
CPW13 (BN-YE) |
22 |
SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
