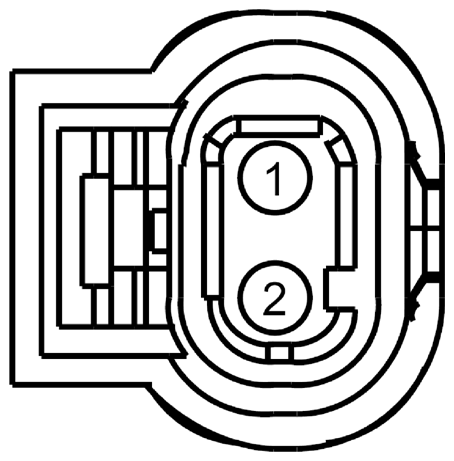

Battery Monitoring Sensor Connector End View (C4433)

Fig 1: Identifying Battery Monitoring Sensor Connector (C4433)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CDC05 (WH)	18	CONTROL UNIT - BATTERY # POWER OFF (BPO)
2	CDC56 (GY-VT)	20	CTRL MOD. - BATTERY MONITORING SYSTEM LIN BUS
