Hydraulic Control Unit (HCU): Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure, refer to HEALTH AND SAFETY PRECAUTIONS . Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
If installing a new Hydraulic Control Unit (HCU)/Anti-Lock Brake System (ABS) module, upload the Anti-Lock Brake System (ABS) module configuration to the scan tool.
Refer to: MODULE CONFIGURATION - SYSTEM OPERATION AND COMPONENT DESCRIPTION .
Refer to: TRANSMISSION CONTROL MODULE (TCM) .

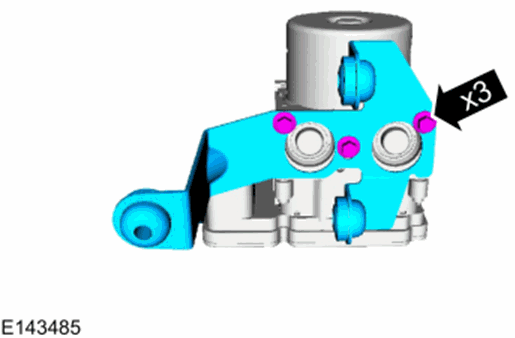

Courtesy of FORD MOTOR CO.
Torque : 18 Nm

Courtesy of FORD MOTOR CO.
Torque : 9 Nm

Courtesy of FORD MOTOR CO.
Torque : 9 Nm

Courtesy of FORD MOTOR CO.
