Climate Control Assembly: Notes

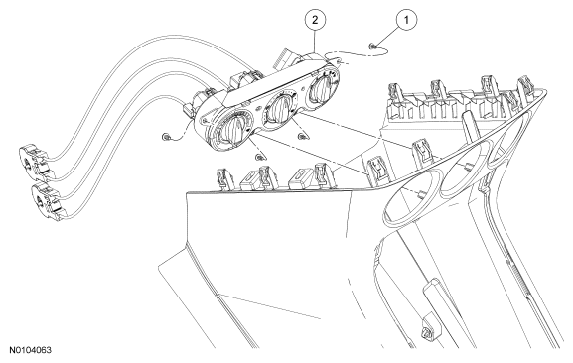

Fig 1: Identifying Climate Control Assembly And Screw
G06293513Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W700580 Climate control assembly screw (4 required)
2 18C419 Climate control assembly
