Blower Motor: Notes

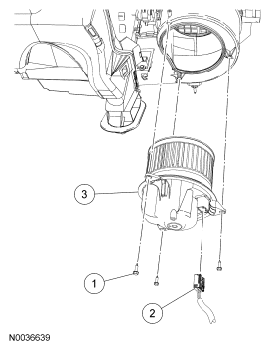

Fig 1: Identifying Blower Motor, Electrical Connector And Screw
G06293508Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Blower motor screw (3 required)
2 - Blower motor electrical connector (part of 14401)
3 19805 Blower motor
