Blower Motor Switch: Notes

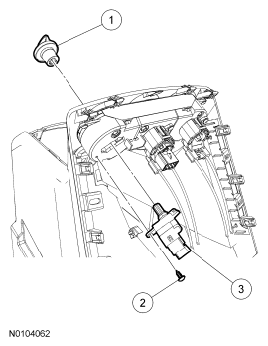

Fig 1: Identifying Blower Motor Switch Knob And Screw
G06293512Courtesy of FORD MOTOR CO.
Item Part Number Description
1 18519 Blower motor switch knob
2 W700580 Blower motor switch screw
3 18578 Blower motor switch
