Mode 6 - 2012 Ford - Except Diesel
>>
UEGO Heater Monitor
UEGO Heater Monitor

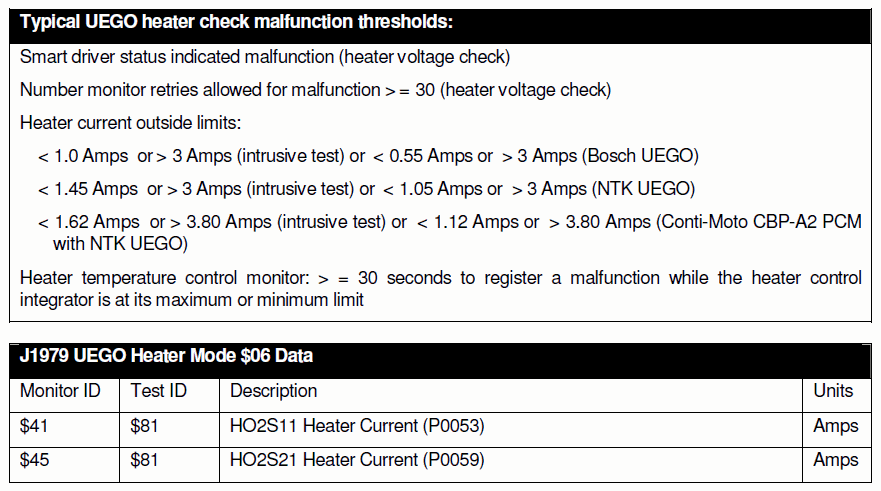

Fig 1: Mode $06 Data For UEGO Heater Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
