Front End Accessory Drive (FEAD) - Exploded View

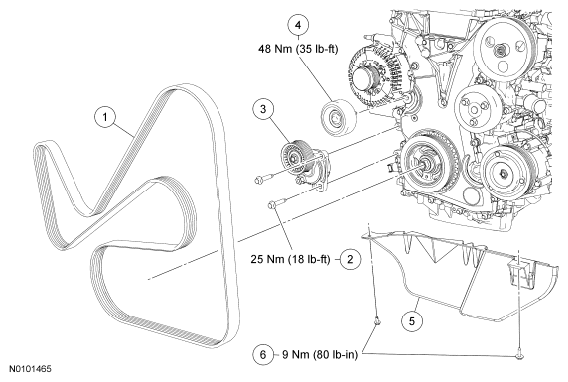

Fig 1: Exploded View Of Front End Accessory Drive With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8620	Accessory drive belt
2	W500310	Accessory drive belt tensioner bolt (2 required)
3	6A228	Accessory drive belt tensioner
4	8678	Accessory drive belt idler pulley
5	6775	Accessory drive belt splash shield
6	-	Accessory drive belt splash shield bolts (2 required)

1. For additional information, refer to the procedures in this information.
