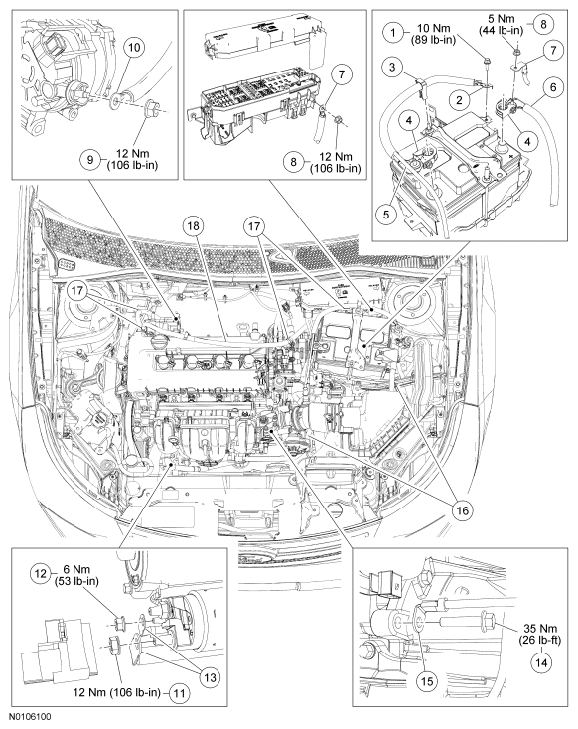

| 1 |
W712524 |
Battery ground cable body terminal bolt |
| 2 |
14463 |
Battery ground cable body terminal (part of 14A280) |
| 3 |
14A163 |
Battery ground cable locator (part of 14A280) |
| 4 |
14451 |
Battery terminals (part of 14A280) |
| 5 |
14A280 |
Battery ground cable |
| 6 |
14A280 |
Positive battery cable |
| 7 |
14463 |
Battery Junction Box (BJB) terminal (part of 14290) |
| 8 |
W520412 |
BJB terminal nut |
| 9 |
W711953 |
Generator B+ terminal nut (part of 14300) |
| 10 |
14463 |
Generator B+ terminal (part of 14300) |
| 11 |
W701596 |
Starter solenoid terminal nut |
| 12 |
W704141 |
Starter solenoid wire terminal nut |
| 13 |
14463 |
Starter solenoid terminals (part of 14A280) |
| 14 |
W500521 |
Battery ground cable engine terminal bolt |
| 15 |
14452 |
Battery ground cable engine terminal (part of 14A280) |
| 16 |
14A163 |
Positive battery cable clips (part of 14A280) (2 required) |
| 17 |
14A169 |
Alternator cable clips (part of 14300) (4 required) |
| 18 |
14A163 |
Alternator cable (part of 14300) |
