Inner Constant Velocity (CV) Joint Boot: Notes
SPECIAL TOOLS
| Installer, Constant Velocity Joint Boot Clamp 205-343 (T95P-3514-A) |

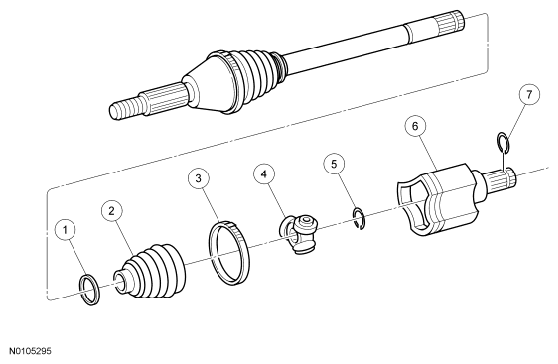

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Small CV boot clamp (part of 3A331 boot kit) |
| 2 | - | CV boot (part of 3A331 boot kit) |
| 3 | - | Large CV boot clamp (part of 3A331 boot kit) |
| 4 | - | Tripod (part of 3B436 joint kit) |
| 5 | 3B498 | Tripod circlip |
| 6 | - | Inner CV joint housing (part of 3B436 joint kit) |
| 7 | W700859 | Halfshaft retaining clip |
