Window Glass - Third Row: Notes

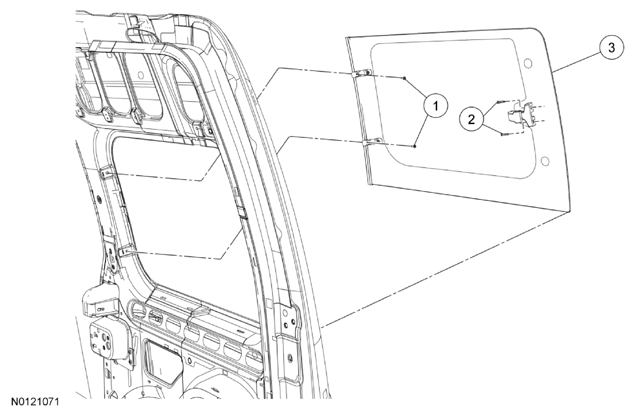

Fig 1: Identifying Third Row Window Glass Removal And Installation
G07996571Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505145 Pivot arm screws (2 required)
2 W505145 Latch screws (2 required)
3 29710 Third row window glass
