Backrest Disassembly - View 2

NOTE: LH shown in illustration, RH similar.

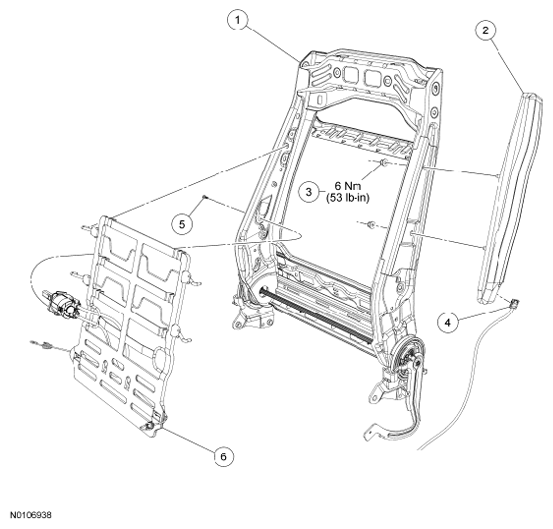

Fig 1: Front Seat Backrest Disassembly - View 2 With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	61019	Backrest frame
2	611D11	Side air bag module
3	W520201	Side air bag module nut (2 required)
4	-	Side air bag module electrical connector
5	00813D	Lumbar adjuster screw
6	64701	Adjustable lumbar assembly
