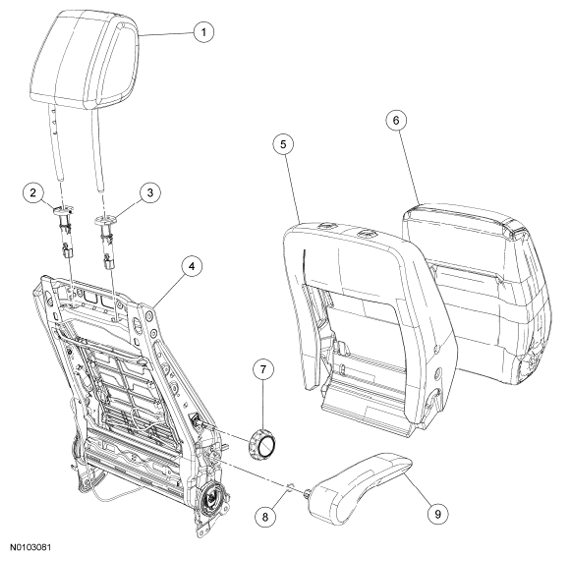

Backrest Disassembly - View 1
NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint |
| 2 | 610A16A | Head restraint guide sleeve, LH (with non-locking bezel) |
| 3 | 610A16B | Head restraint guide sleeve, RH (with locking bezel) |
| 4 | 61019 | Backrest frame |
| 5 | 64811 | Backrest foam pad |
| 6 | 64417 | Backrest cover |
| 7 | 62578 | Adjustable lumbar knob |
| 8 | 00817 | Armrest spring retainer |
| 9 | 644A23 | Armrest |
