Hood Latch: Notes
NOTE:

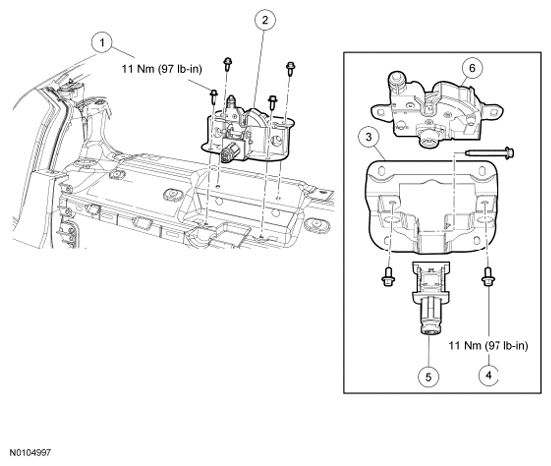

Radiator grille shown in illustration removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | W500011 | Hood latch bracket bolts (4 required) |
| 2 | - | Hood latch assembly |
| 3 | 16707 | Hood latch bracket |
| 4 | W703518 | Hood latch bolts (3 required) |
| 5 | 3697 | Hood latch lock cylinder |
| 6 | 16700 | Hood latch |
