Power Distribution: Notes

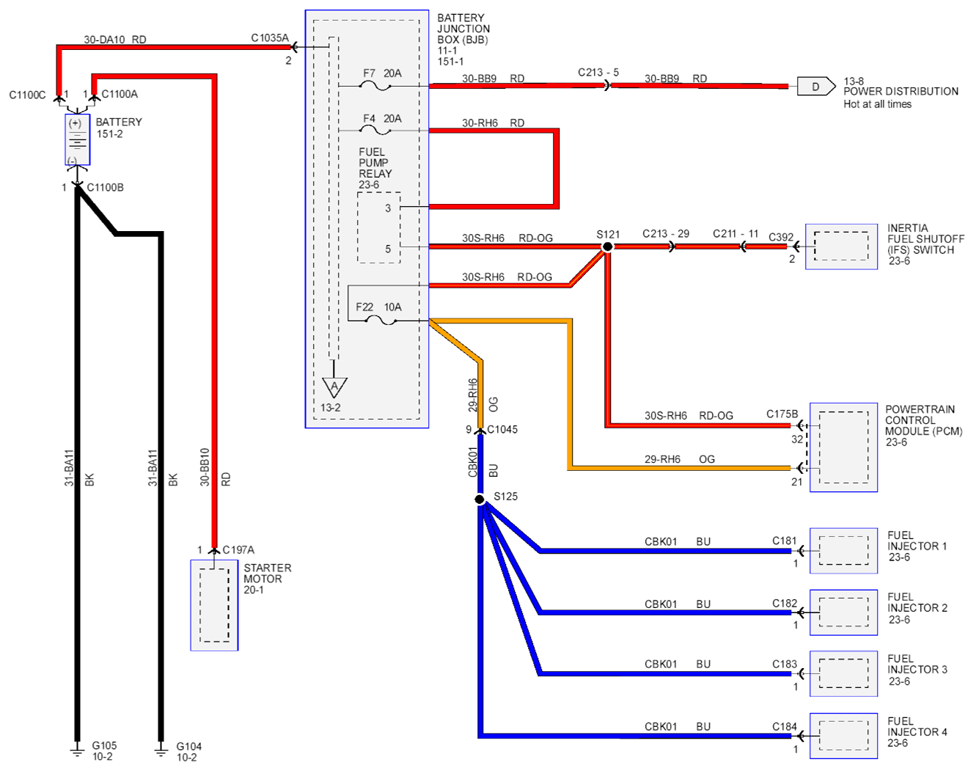

Fig 1: Power Distribution Circuit Diagram

G07909316

Courtesy of FORD MOTOR CO.
