With Power Door Locks

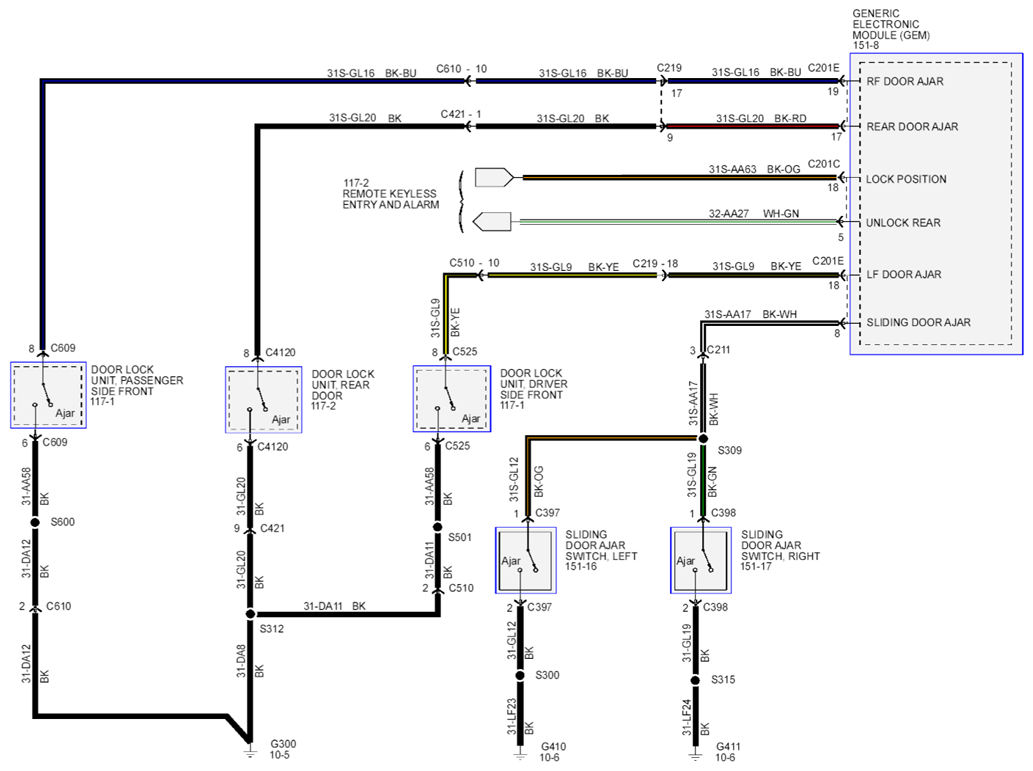

Fig 1: Multifunction Control Modules Circuit Diagram - With Power Door Locks (1 Of 4)
G07909261Courtesy of FORD MOTOR CO.

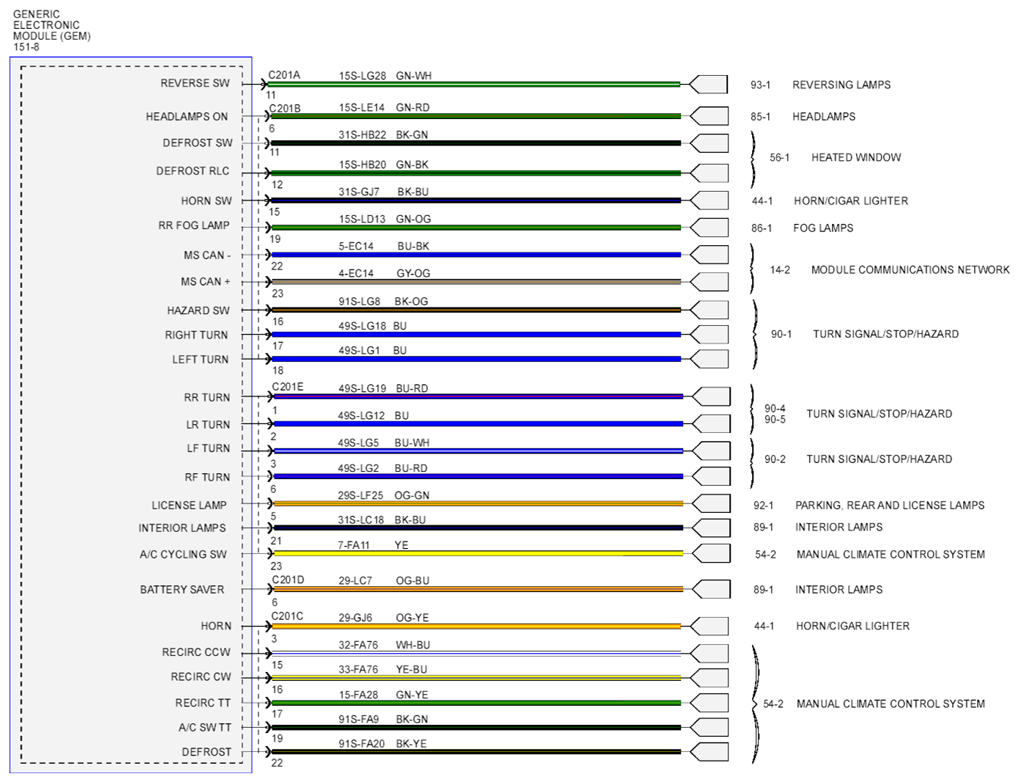

Fig 2: Multifunction Control Modules Circuit Diagram - With Power Door Locks (2 Of 4)
G07909262Courtesy of FORD MOTOR CO.

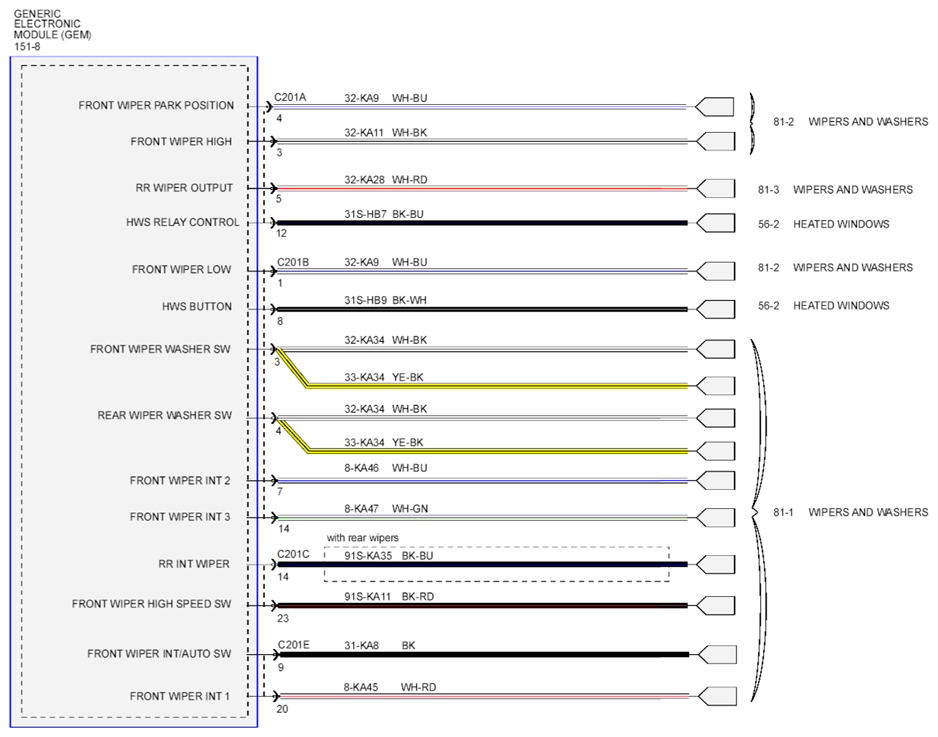

Fig 3: Multifunction Control Modules Circuit Diagram - With Power Door Locks (3 Of 4)
G07909263Courtesy of FORD MOTOR CO.

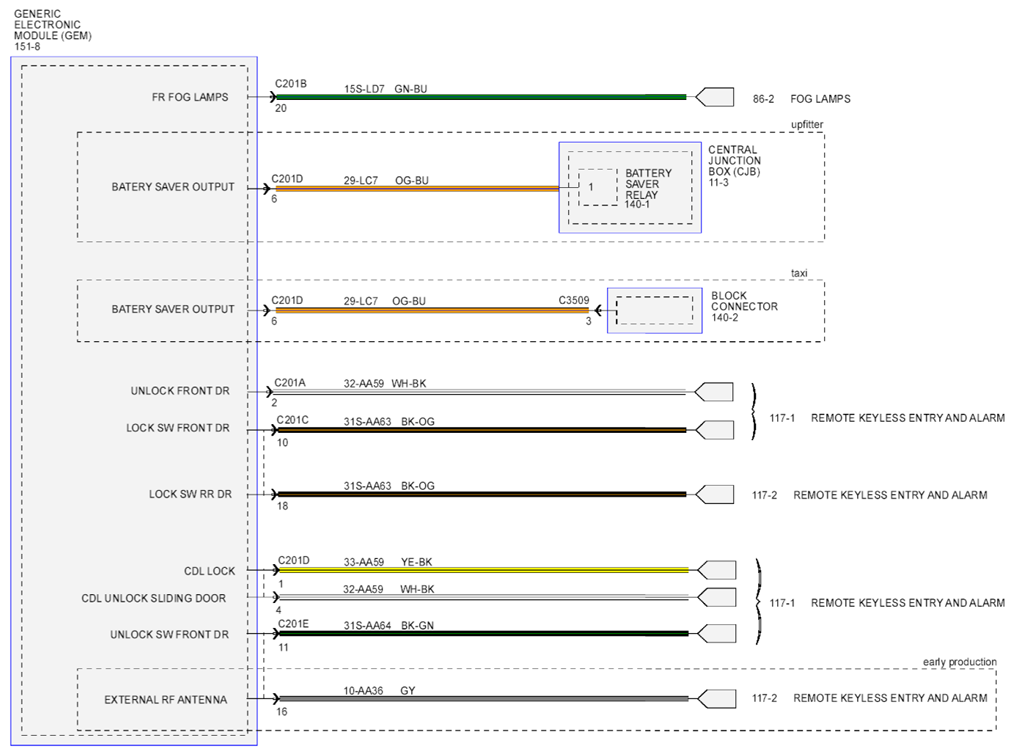

Fig 4: Multifunction Control Modules Circuit Diagram - With Power Door Locks (4 Of 4)
G07909264Courtesy of FORD MOTOR CO.
