Manual Climate Control System: Notes

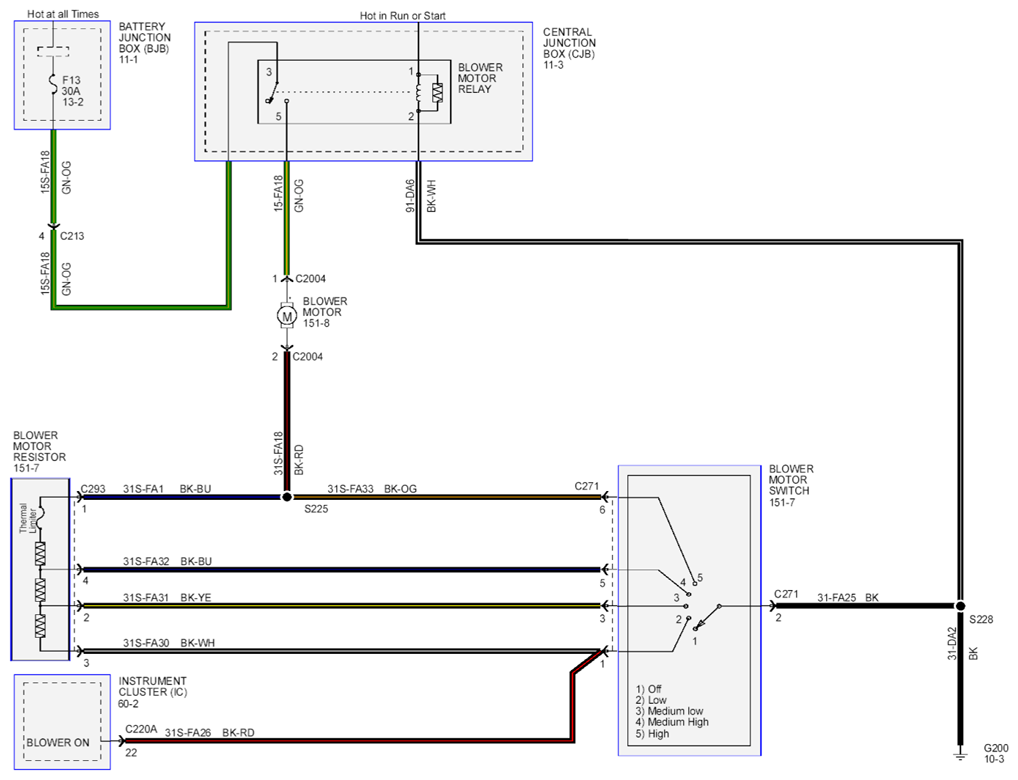

Fig 1: Manual Climate Control System Circuit Diagram (1 Of 3)
G07909252Courtesy of FORD MOTOR CO.

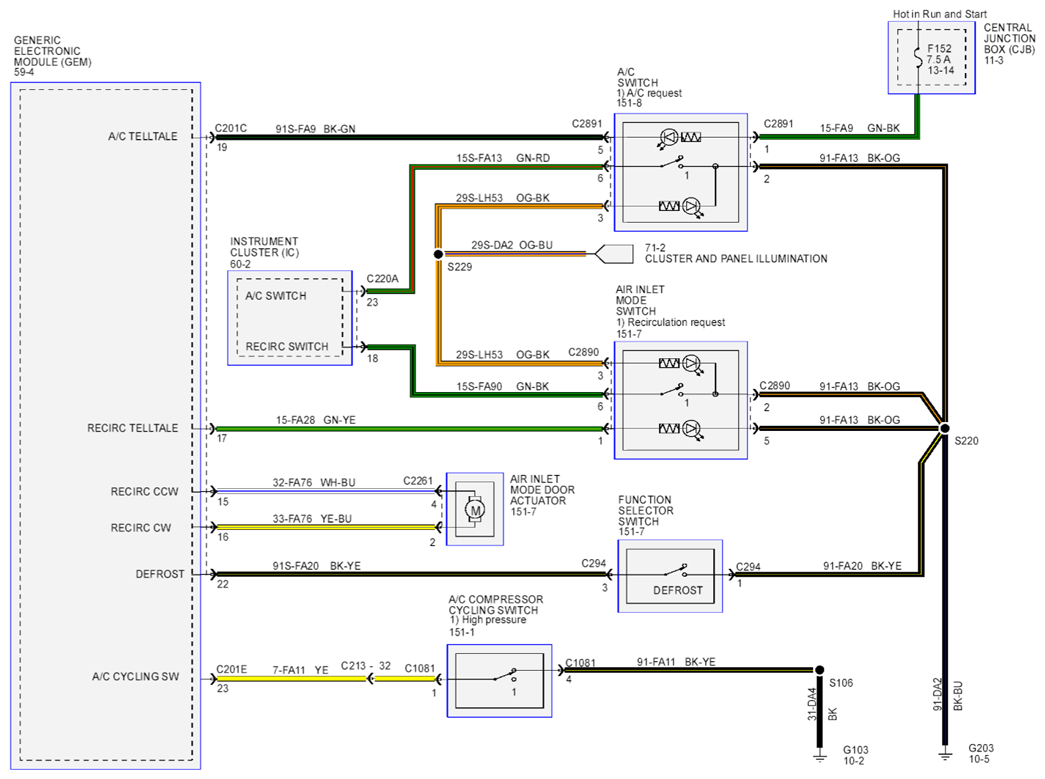

Fig 2: Manual Climate Control System Circuit Diagram (2 Of 3)
G07909253Courtesy of FORD MOTOR CO.

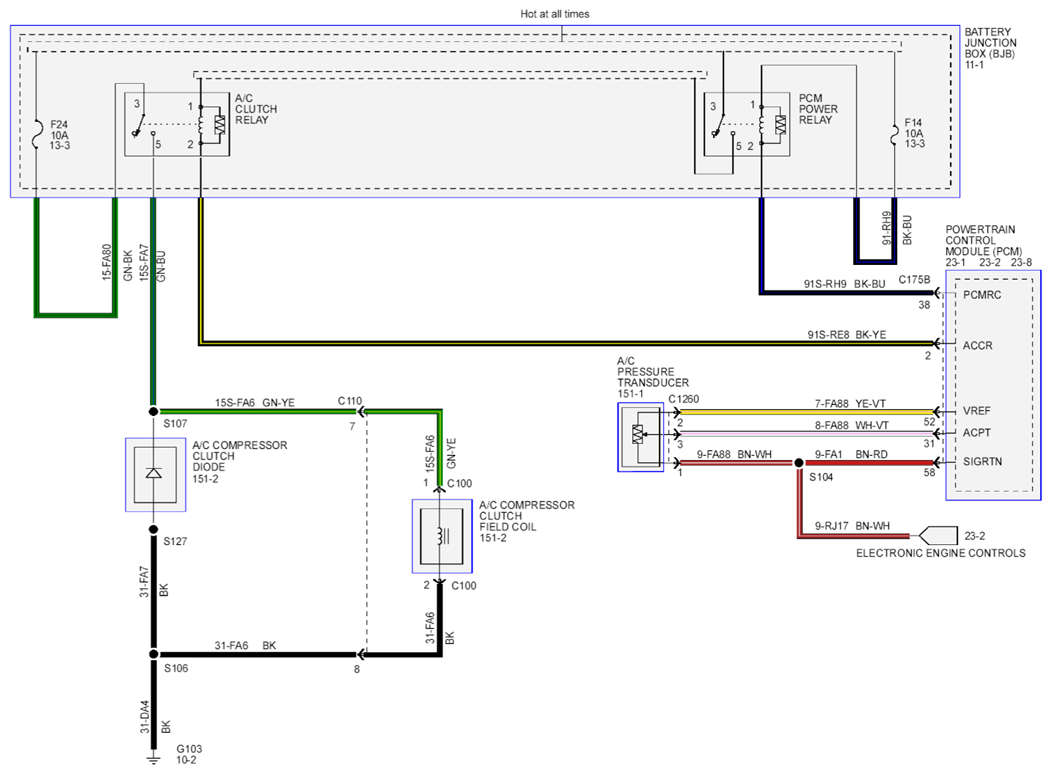

Fig 3: Manual Climate Control System Circuit Diagram (3 Of 3)
G07909254Courtesy of FORD MOTOR CO.
