Window Control Switch: Notes

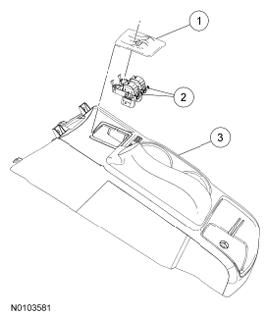

Fig 1: Identifying Window Control Switch Removal And Installation
G06328442Courtesy of FORD MOTOR CO.
Item Part Number Description
1 11202 Window control switch bezel
2 14529 Window control switches (2 required)
3 - Rear section of floor console
