Crankshaft Position (CKP) Sensor

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The Crankshaft Position (CKP) sensor must be positioned into the fitting on the crankshaft rear seal retainer plate and be flush against the boss on the engine block before the bolt is installed. If the CKP sensor is installed incorrectly, the CKP sensor can be damaged.

NOTE: The intake manifold must be removed to perform this procedure. For additional information, refer to ENGINE MECHANICAL - 6.2L .

NOTE: After installing the CKP sensor, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.

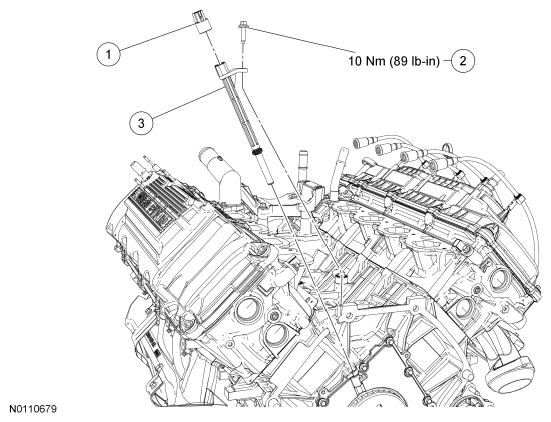

Fig 1: Crankshaft Position Sensor, Electrical Connector And Bolt With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Crankshaft Position (CKP) sensor electrical connector
2	W503276	CKP sensor bolt
3	6C315	CKP sensor
